DOMII ECG (Electrocardiograph)

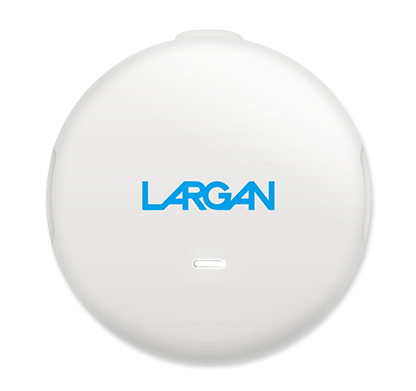

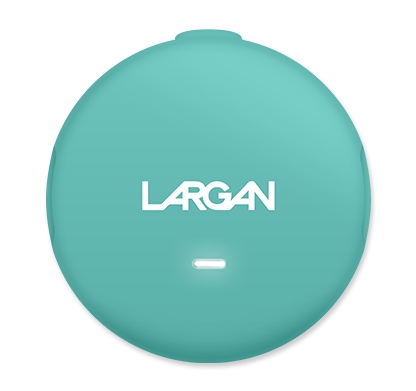

| Model | AT-202B | AT-202C | |
|---|---|---|---|
| Sensor | Electrocardiograph |
||
| Number of channels：1 | Number of channels：2 | ||
| Sampling rate： 250 Hz | |||
| Input range： ±350 mV | |||
| Sensitivity： 48.1 nV | |||
| Input impedance： ≧10 MΩ | |||
| CMRR： ≧80 dB | |||
| Bandwidth：0.05~55 Hz | |||
| Noise： < 50 uV | |||
| Gain error： < 10% | |||
Acceleration sensor |
|||
| Communication | USB2.0 BLE4.2 | ||
| Power | DC 5V 100mA | ||
| Charging port | Micro USB | ||
| Battery | Lithium polymer | ||
| Size | 52(R) X 9(H) mm | ||
| Weight | 18g | ||
| Material | PC | ||
| Operating temperature range | 5°C ~ 45°C | ||
| Storage temperature range | -20°C ~ 45°C | ||
| Warranty | 1 Year | ||
